Expedition Trailer · June 2011
M416 Frame Mods

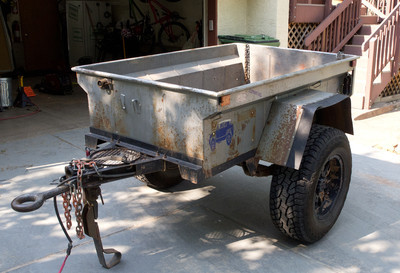

With the intention of moving my roof top tent rack outside the trailer bed some frame modifications were needed.

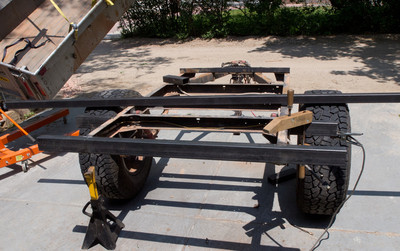

The initial modifications where to the frame. I needed to extend the front and rear frame cross members about 10″ out from the side of the bed.

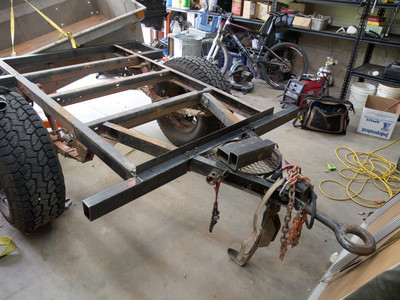

The front and rear cross members where replaced. The center was extended with short sections of tubing These center sections are not structural.

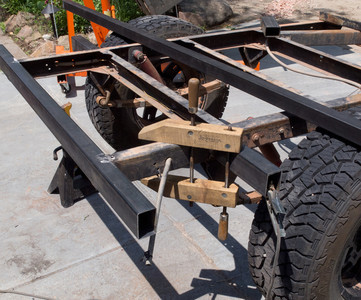

The extended frame was then boxed in with the same tubing.

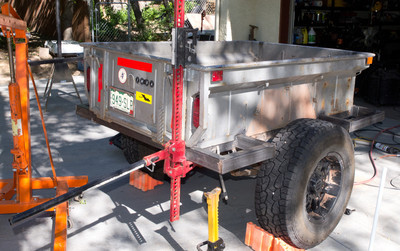

With the frame modified I was able to remount the tub to the trailer frame. I did need to notch the lower lip on the tub to accommodate the extended frame.
Great start! I look forward to seeing the finished project!
cheers,
dale
